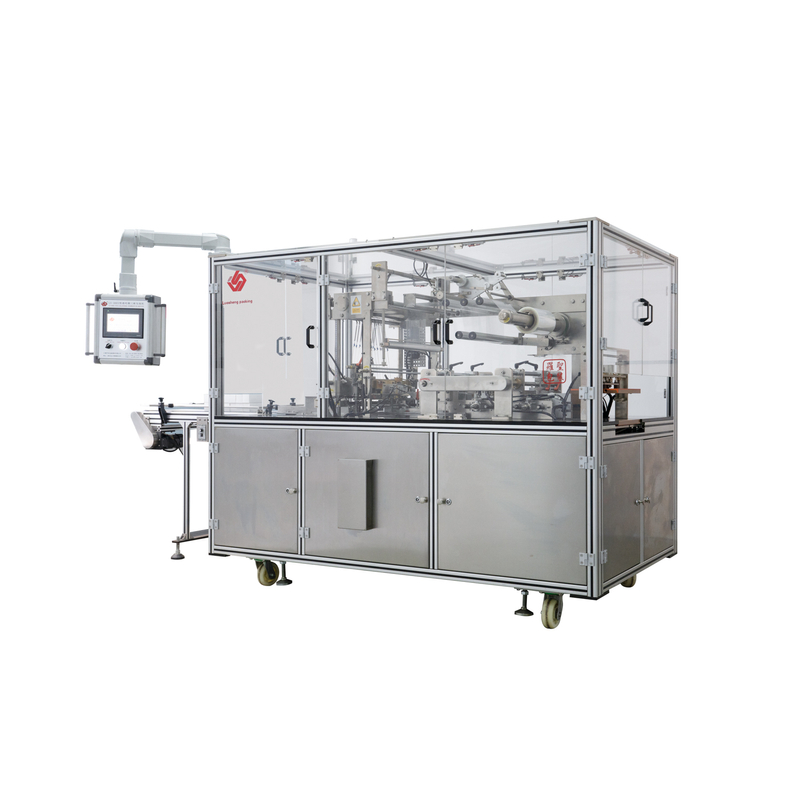

LS-300S Automatic Overwrapping Machine with Tear Tape

The LS-300S is an automatic overwrapping machine designed for wrapping individual products and product bundles with transparent packaging film. It is suitable for a range of boxed products, including perfume boxes, cosmetic cartons, pharmaceutical boxes, stationery products and other compatible packaging applications.

Equipped with a PLC control system, HMI and servo-driven mechanisms, the LS-300S is designed to provide controlled film feeding, product transfer and consistent wrapping performance. Its tear tape function provides a convenient opening feature for compatible packages.

With a published packaging speed of 20–50 pieces per minute, the LS-300S is suitable for manufacturers evaluating automatic overwrapping equipment for medium-speed packaging operations. Actual output depends on product dimensions, package configuration, film characteristics and operating conditions.

Key Features of the LS-300S Overwrapping Machine

1. PLC Control System with HMI

The PLC control system and human-machine interface support machine operation and process control.

2. Servo-Driven Film Feeding and Product Transfer

Servo-driven film feeding and transfer mechanisms help control the movement of packaging film and products during the wrapping process.

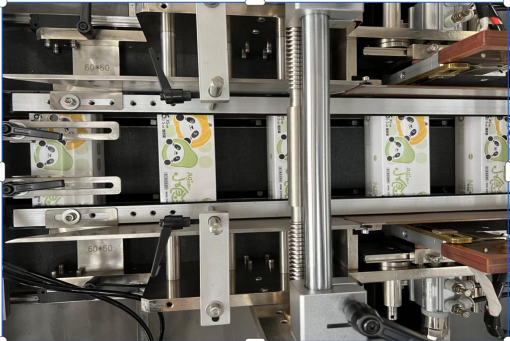

3. Individual Product Transport System

The Individual Product Transport (IPT) system is designed to support accurate positioning during the wrapping process.

4. Tear Tape Function

The LS-300S is configured for overwrapping applications that require tear tape, helping users open the finished package conveniently.

5. Adjustable Packaging for Different Box Sizes

The machine is designed to handle products within its specified packaging dimensions. Changeover procedures and settings should be confirmed according to the actual product and machine configuration.

6. Packaging Materials

The published compatible material list includes cellophane, OPP, BOPP and PVC, as well as tear tape or ribbon where applicable. Final material selection should be confirmed through a packaging test.

Technical Specifications of the LS-300S

Please confirm the specifications and material compatibility with LS-PACK before ordering.

Applications of the Automatic Overwrapping Machine

The LS-300S can be evaluated for the following applications, subject to product dimensions and packaging requirements:

• Perfume boxes

• Cosmetic cartons

• Pharmaceutical boxes

• Stationery packaging

• Playing card boxes

• Cigarette boxes, where legally applicable

• Candy and chocolate boxes

• Other compatible boxed products

For applications involving different box sizes or bundled products, please provide product samples and packaging requirements for evaluation.

How Does an Overwrapping Machine Work?

The overwrapping process generally includes the following stages:

1. Product feeding and positioning.

2. Packaging film feeding and cutting.

3. Product transfer and film wrapping.

4. Folding and sealing of the film around the package.

5. Tear tape application where required by the configuration.

6. Inspection of the finished package.

The actual sequence and functions depend on the machine configuration and packaging requirements.

How to Choose the Right Overwrapping Machine

Before selecting an automatic overwrapping machine, consider the following factors:

• Product length, width and height.

• Required packaging speed in pieces per minute.

• Packaging film type and thickness.

• Whether tear tape is required.

• Individual product or bundle packaging.

• Required package appearance and opening method.

• Available factory space and production line layout.

Request a Quote for the LS-300S

Looking for an automatic overwrapping machine for your product?

Send LS-PACK your product dimensions, packaging material requirements, target production speed and photos of the finished package. Our team can review your application and discuss a suitable machine configuration.

Contact us to request machine specifications, packaging evaluation and a quotation.

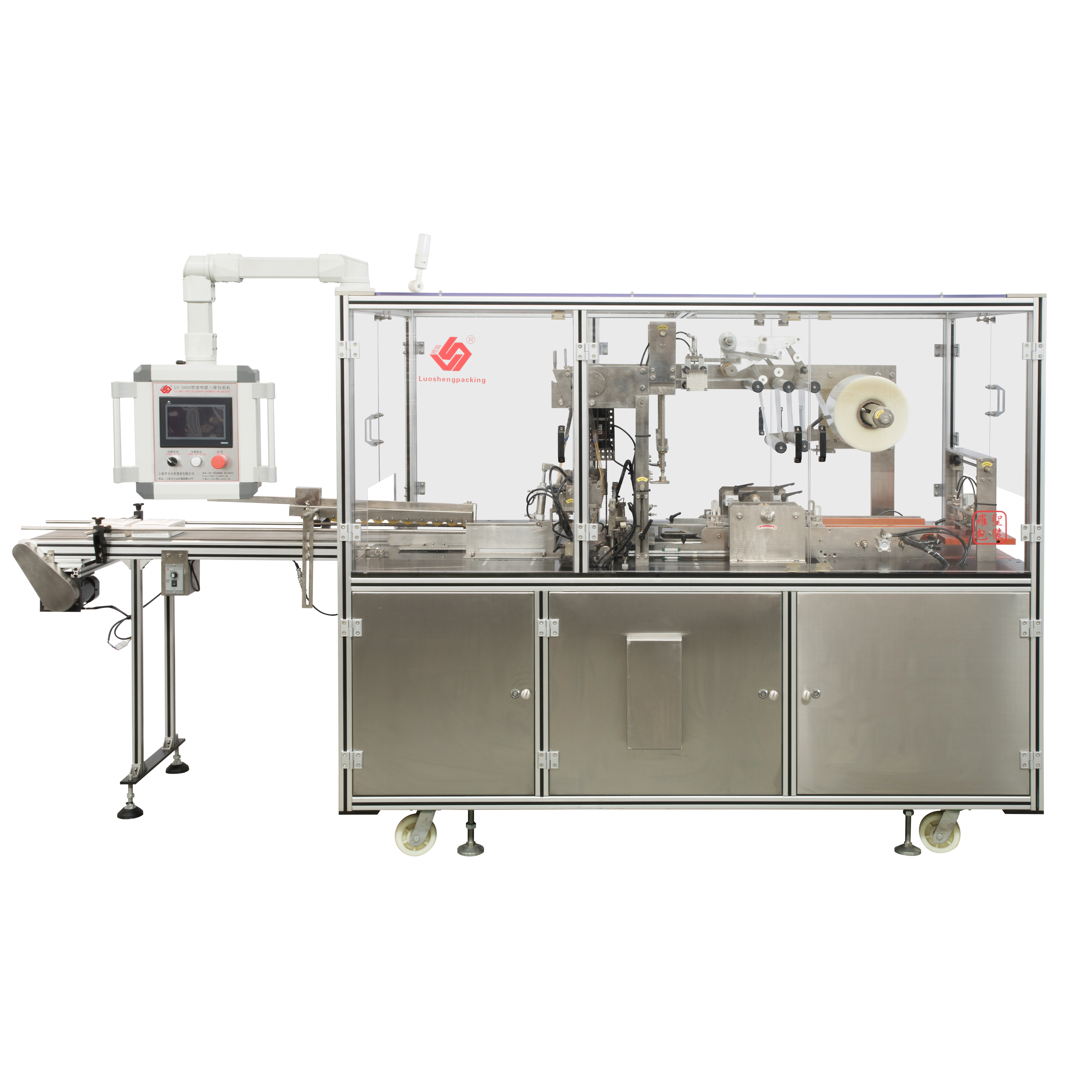

Overwrapping Machine(With Tear Tape) LS-300S

The LS-300S especially designed for the packaging of single, as well as bundles, at medium to higher speeds.Suit for outer over wrapping of CD/DVD box, stationery, condom box, playing card, cigarettes box, perfume box, cosmetic box, drugs box, candy and chocolate box…etc.

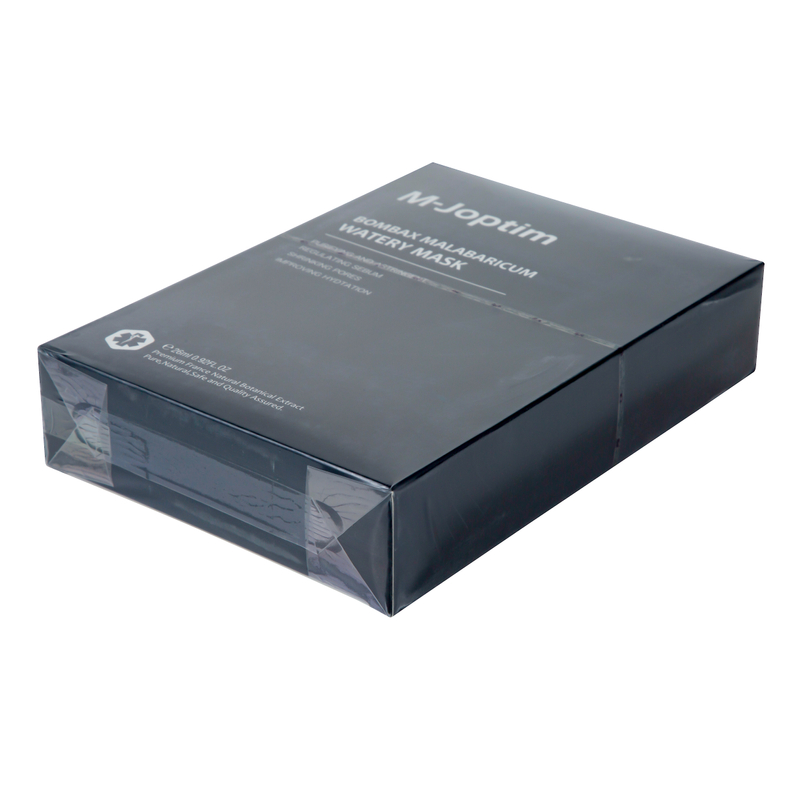

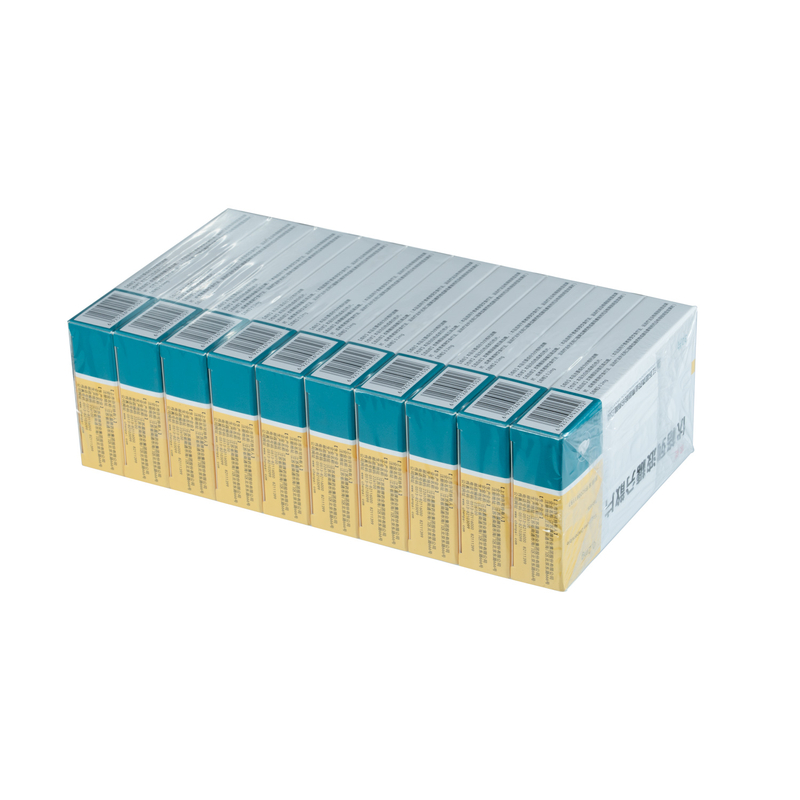

Finished Sample boxes
