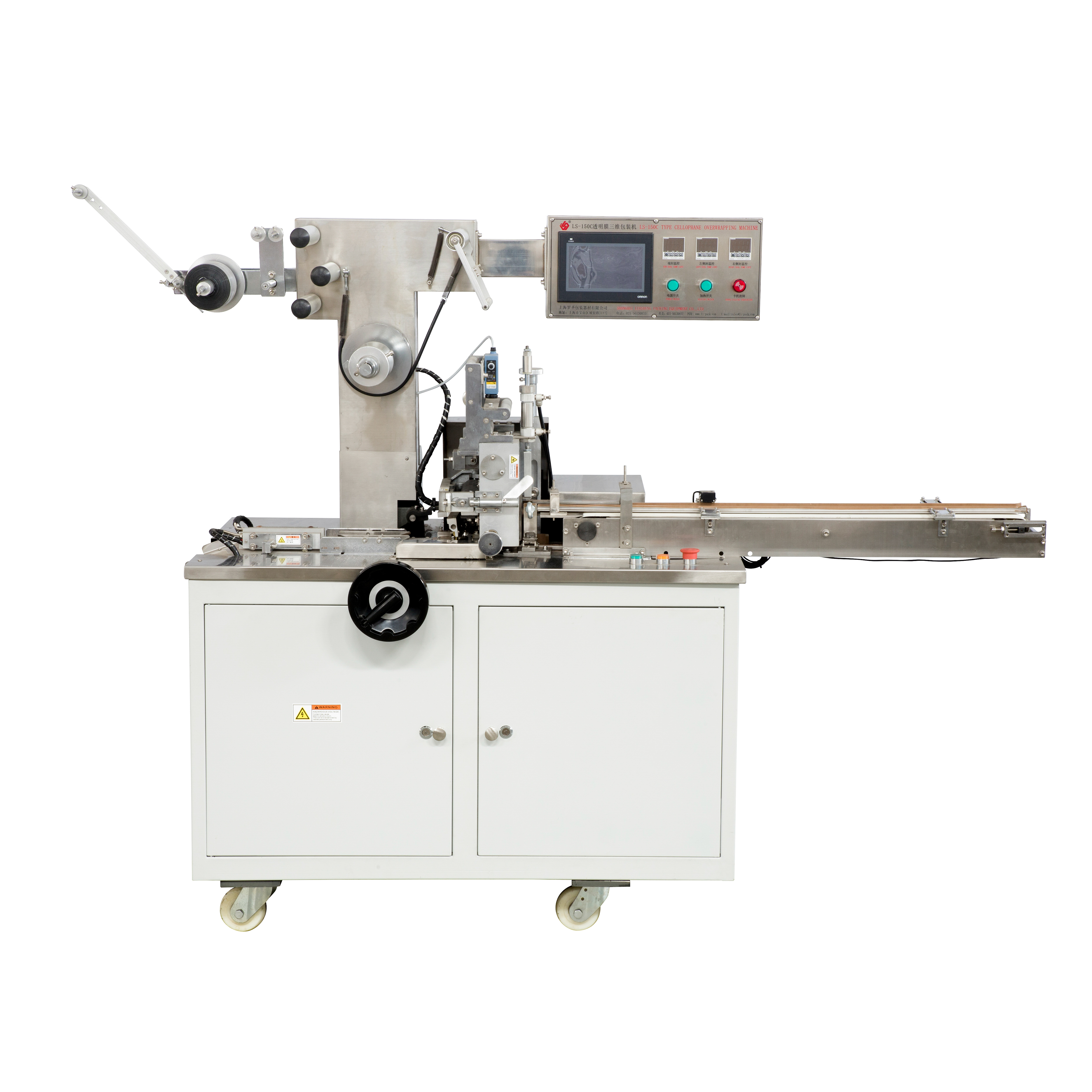

The Transparent Film Three-dimensional Packaging Machine Is Based on The Product Size

Transparent Film 3D Packaging Machines: Customization for Product Dimensions

Transparent film 3D packaging machines are widely adopted in industries such as cosmetics, pharmaceuticals, and food to enhance product visibility and shelf appeal. These systems wrap products in clear plastic films, forming a tight, three-dimensional seal that protects contents while maintaining aesthetic clarity. Adapting these machines to accommodate varying product sizes is critical for efficiency and quality.

Understanding Product Dimension Requirements

The first step in configuring a transparent film 3D packaging machine is assessing the physical attributes of the product. Key dimensions include length, width, height, and shape complexity.

• Length and Width: Machines must accommodate the maximum and minimum dimensions of products. For example, a system designed for small vials (20–50 mm in diameter) may require adjustable guides, while larger boxes (100–200 mm) need wider sealing stations.

• Height Variations: Products with irregular heights, such as stacked items or multi-component kits, demand adjustable sealing jaws. Some machines incorporate hydraulic or pneumatic systems to maintain consistent pressure across varying elevations.

• Shape Complexity: Curved, cylindrical, or asymmetrical products (e.g., perfume bottles) require specialized film-folding mechanisms. Machines may use servo-driven rollers to contour the film precisely around the product’s profile.

Tolerance Levels: High-precision machines achieve sealing tolerances of ±0.5 mm, ensuring airtight packaging even for delicate items like medical syringes.

Adjustable Components for Flexible Sizing

Transparent film 3D packaging machines rely on modular designs to handle diverse product sizes without extensive retooling.

• Film Feed Systems: Adjustable tension rollers regulate the amount of film dispensed based on product dimensions. For narrow items, rollers reduce film width to minimize waste, while wider products trigger extended feed lengths.

• Sealing Stations: Heated jaws or ultrasonic sealers adapt to product height. Some models feature interchangeable sealing plates for quick transitions between small (e.g., lipstick tubes) and large (e.g., gift sets) items.

• Conveyor Belts: Variable-speed conveyors synchronize with packaging cycles. Products under 30 mm tall may require slower belt speeds to prevent misalignment, whereas taller items (e.g., jars) benefit from faster throughput.

Film Guidance Systems: Side guides with manual or motorized adjustment ensure the film aligns centrally, preventing wrinkles or uneven seals on products with irregular shapes.

Software and Control Systems for Precision

Modern transparent film 3D packaging machines integrate advanced software to automate size adjustments and enhance operational flexibility.

• Touchscreen Interfaces: Operators input product dimensions via HMI screens, which calculate optimal settings for film tension, sealing time, and conveyor speed. Some systems store presets for recurring products.

• Sensor Technology: Vision systems or laser scanners detect product dimensions in real time. If a batch varies by ±2 mm from the programmed size, sensors trigger automatic adjustments to the sealing station.

• Data Connectivity: Machines linked to production management systems (e.g., MES) receive dimension updates wirelessly. For instance, a shift from small vials to large bottles can be initiated remotely, reducing downtime.

Error Prevention: Software algorithms flag mismatches between product sizes and machine capabilities, alerting operators to potential sealing failures before production begins.

Material Compatibility and Performance Optimization

The choice of transparent film and machine settings directly impacts packaging quality across product sizes.

• Film Thickness: Thin films (15–30 µm) suit lightweight products (e.g., candies), while thicker films (50–100 µm) provide durability for heavy items (e.g., hardware tools). Machines adjust sealing temperatures accordingly to prevent burns or incomplete seals.

• Film Types: PVC, PET, and OPP films offer varying stretch and clarity levels. For example, PET films withstand high sealing temperatures (180–220°C), making them ideal for heat-sensitive products packaged in larger formats.

• Environmental Factors: Humidity and temperature fluctuations affect film behavior. Machines in humid climates may require pre-heating stations to stabilize film tension before sealing.

Sustainability Considerations: Recyclable films demand precise tension control to avoid tears during packaging. Machines with eco-mode settings reduce film waste by optimizing cut lengths for each product size.

By prioritizing adjustable hardware, intelligent software, and material awareness, transparent film 3D packaging machines achieve seamless integration with products of all sizes, ensuring both functionality and aesthetic appeal.
