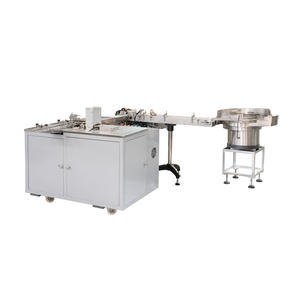

Paper Sleeve Packing Machine XPC-100A

Paper Sleeve Packing Machine
Availability:
Quantity:
  • XPC-100A

  • LUOSHENG

Paper Sleeve Packing Machine


This paper sleeve packing machine is suitable for packing big size eraser,sharpener, the single pack-age of all kinds of small box articles with paper in the trades of stationary, food, health products and medicine box .Through advanced control methods, the trademark paper can be automatically sucked, fed, glued, folded, wrapped, and other functions.


1. Vacuum suction paper,suitable for various specifications and different materials of  paper sleeve

2. Paper feeding use the adjustable synchronous belt,ensure paper feeding stable, efficient, and convenient

3. The eraser adopts synchronous interval positioning feeding, which is better suitable for various ultra-soft and ultra-sticky erasers.

4.Have low level material detection device at the feeding port is more reliable and convenient to operate.

5. It can be equipped with a vibrating plate for feeding, which can be achieved in one step, saving time and effort.


FEATURE


– ● Competitively priced

– –●– Cam mechanic driven system

–– ● Inveter control the speed

– –● SMC pneumatic components

– –● Quick change over facility

––● Flexible size-ranges

– –●Easy operation and maintenance


SPECIFICATIONS



Model

XPC-60A

XPC-100A

Packaging speed

30-120 pcs/min

30-100 pcs/min

Packing dimension(mm)

(L)26-60 (W)16-35 (H)8-14

(L)60-100 (W)20-40 (H)8-18

Total power

0.83Kw

0.83Kw

Power supply

220V 50Hz

220V 50Hz

Air consumption

0.4Mpa

0.4Mpa

Machine weight

350Kg

400Kg

Machine dimension(mm)

1200×800×1150

1300×860×1150

Conveyor dimension(mm)

1000×260×1100

1000×260×1100

Packaging material

LOGO paper sleeve

LOGO paper sleeve

Sample

588A1364588A1365588A1363

DSC00762DSC00761
